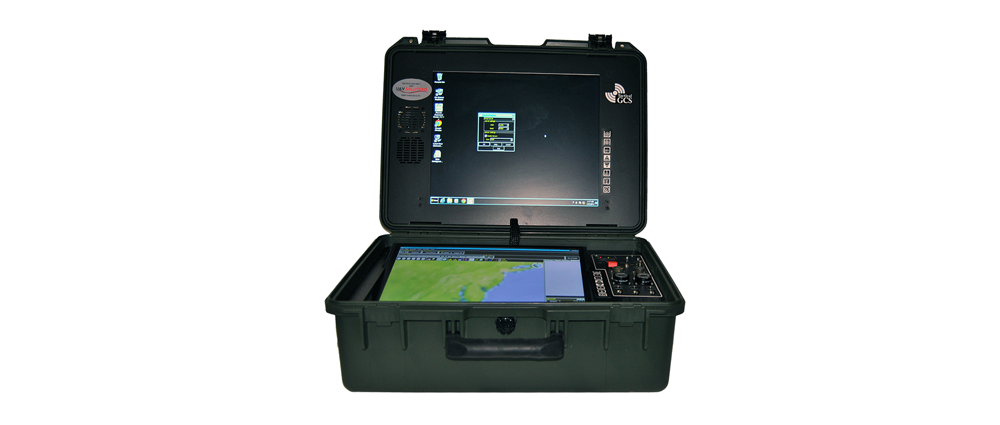

UAVS Tactical Ground Control System

UAV Solutions, Inc. (UAVS) designs and builds the Tactical Ground Control System to control our internally developed unmanned aircraft systems (UAS) as well as UAS platforms designed by other manufacturers.

Our GCS provides the user command and control of payloads, mission planning and real time video. The Tactical GCS can be networked into existing command center networks for video distribution and metadata streams. Equipped with a powerful embedded onboard processor, operators can rapidly receive the vital intelligence they require to complete their mission. Our systems have been created with the user in mind.

UAV Solutions products are export controlled and may require U.S. Government authorization prior to export or re-export.

UAVS Tactical Ground Control System

Exterior dimensions: 21.5″x16.5″x9.2″
Weight: 35 lbs.
Case features: One soft-grip handle, integrated antenna mount

Electrical specifications

Input power: A/C 110
Connections: 3 USB, 2 Ethernet
Selectable video output
CPU power switch
Embedded CPU: Windows 7 PRO, 4GB RAM
Displays: Two (2) 17″ TFT LCD; 1 computer/mission planning
